Bill of materials


Download section

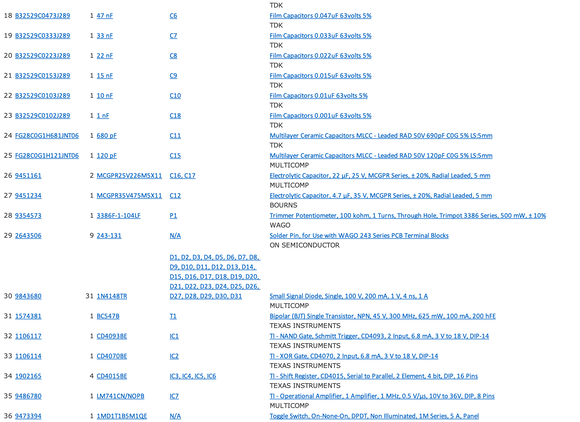

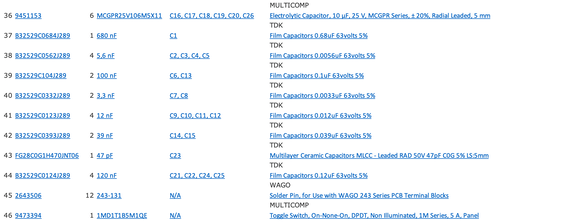

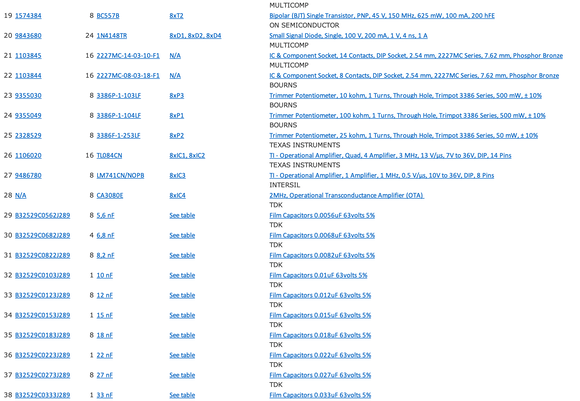

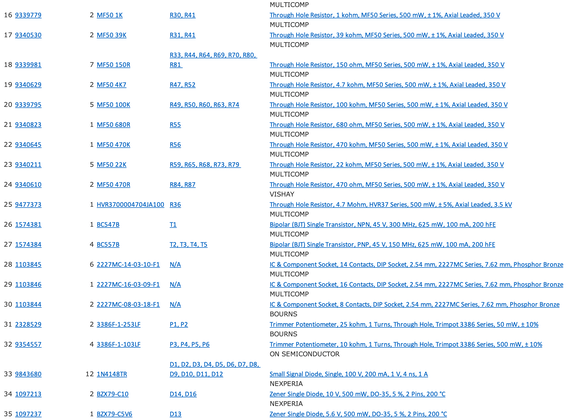

The latest version (08/12/2018) of the BOM can be downloaded here.
The latest version (10/11/2018) of the PCB layouts can be downloaded here.
And the latest version (16/11/2018) of the
wiring instructions can be downloaded here.

The content of the BOM, the PCB layouts and wiring instructions are provided as-is and could contain inaccuracies, typographical errors and out-of-date information. Therefore the provided files may be updated or changed without notice at any time. Use of the information is therefore at your own discretion.


Selection of resistors

The proposed MCMF50 series resistors are axial leaded precision metal film resistors with a tolerance of ±1%. To allow the filters to flow correctly in each other at the right frequency you need this precision resistors.

The BOM does refer to 1/2 Watt resistors, this a consciously choice to get the old-fashioned look of the original device. But also 1/4 Watt or 1/8 Watt resistors are perfectly suitable. To change freely in everyone's sole discretion.


Backplane

Board layout

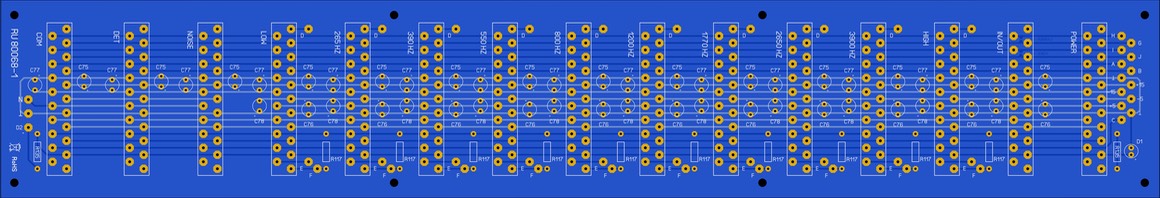

Elektor Vocoder - Backplane

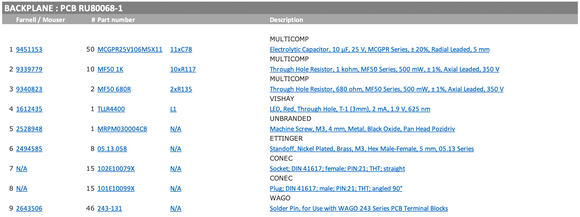

Overview components


Power supply

Board layout

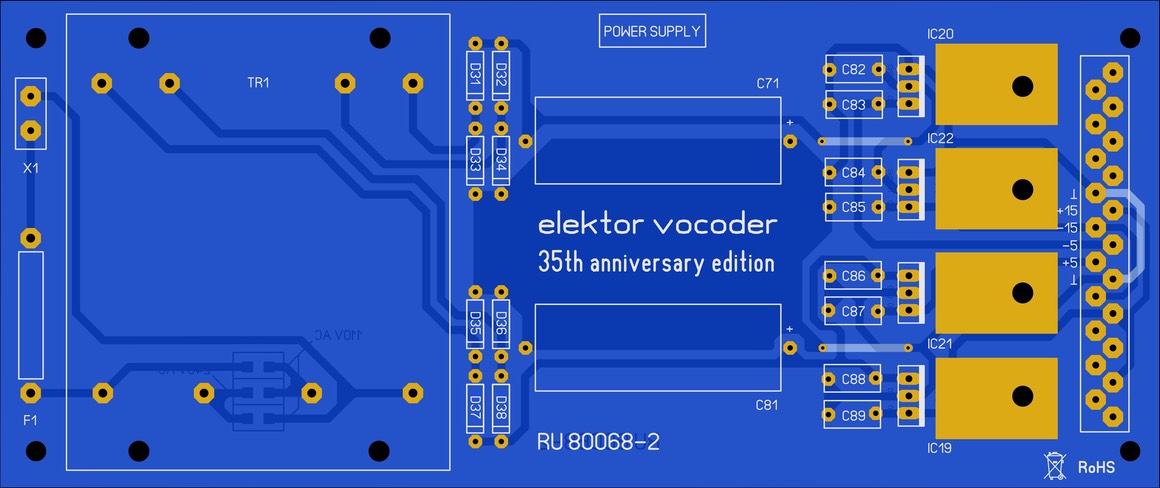

Elektor Vocoder - Power Supply

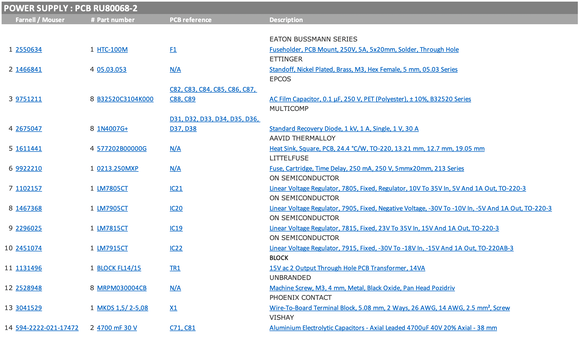

Overview components

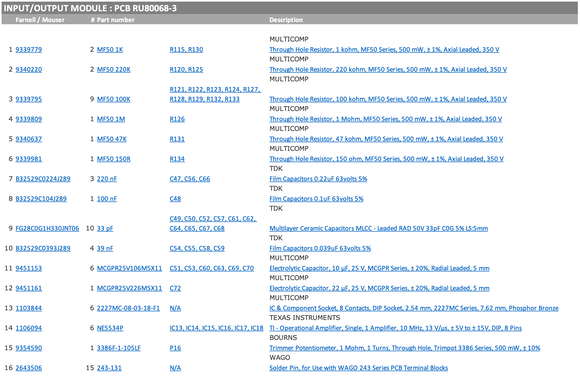

Input/Output module

Board layout

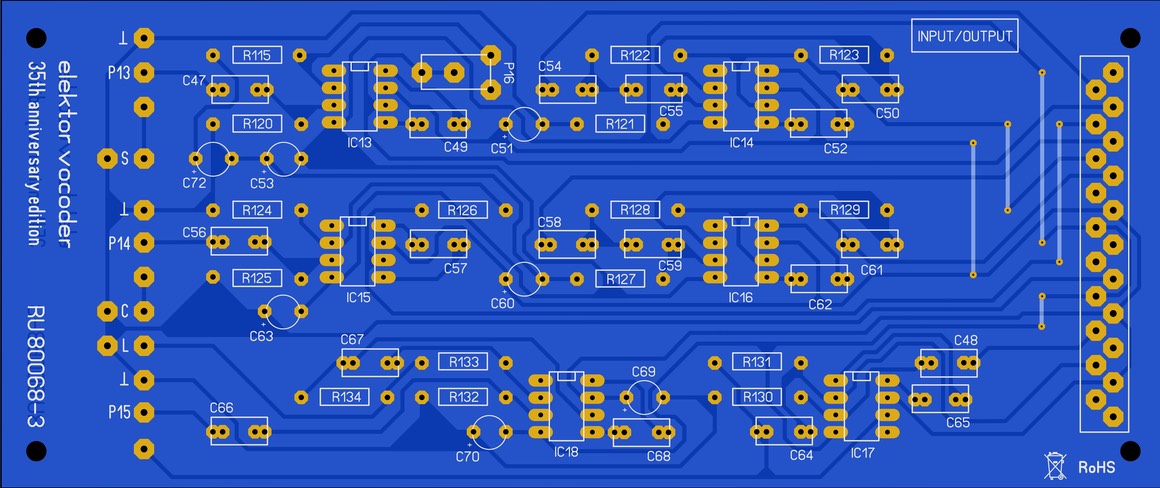

Elektor Vocoder - Input Output Module


Overview components

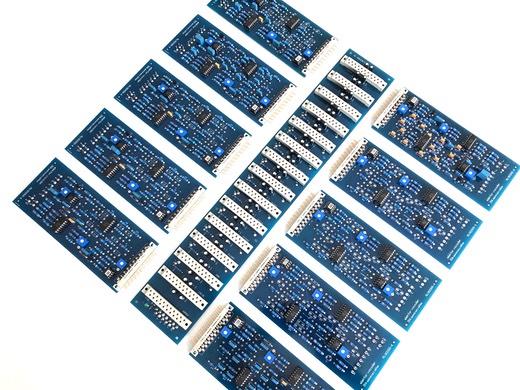

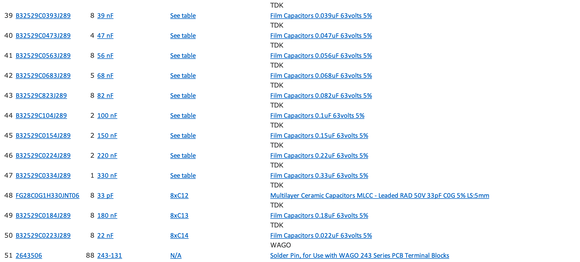

Band pass filters

Board layout

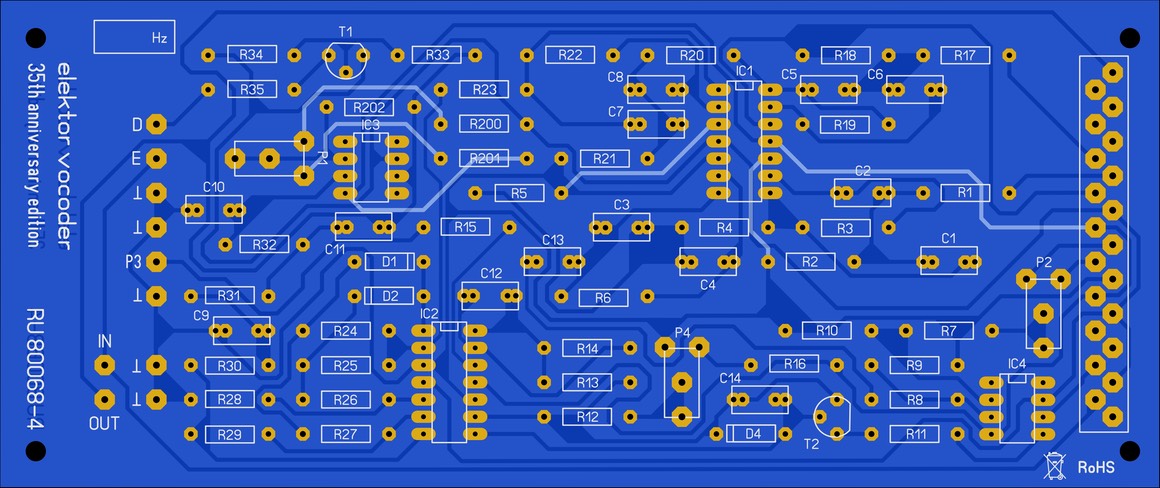

Elektor Vocoder - Band Filter

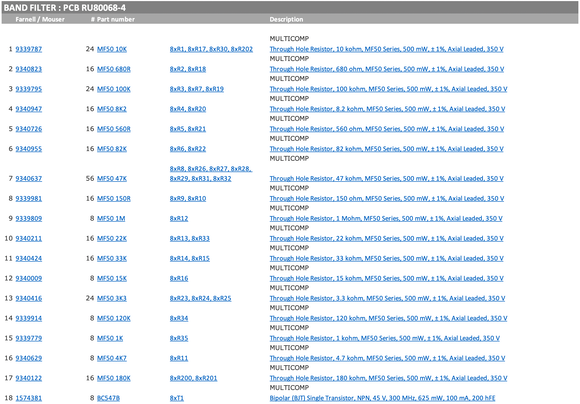

Overview components


Low pass filter

Board layout

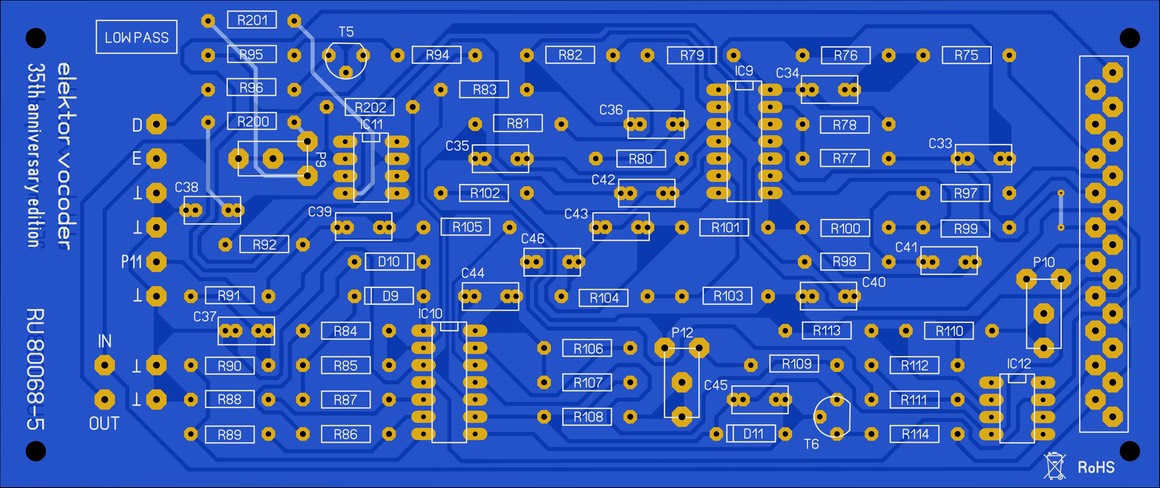

Elektor Vocoder - Low Pass Flter


Overview components


High pass filter

Board layout

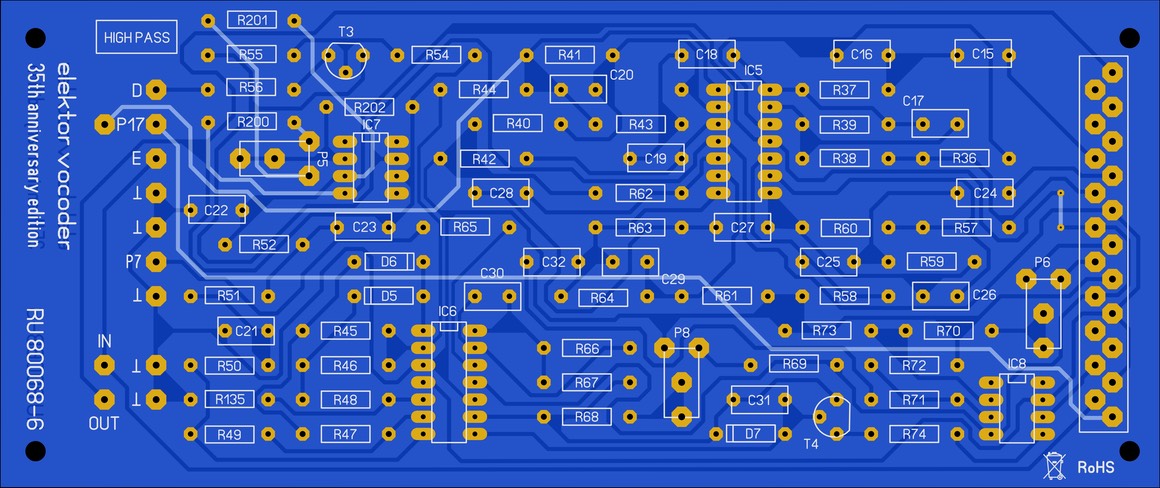

Elektor Vocoder - High Pass Filter

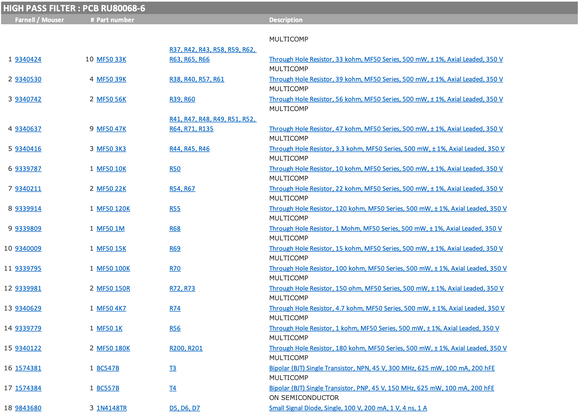

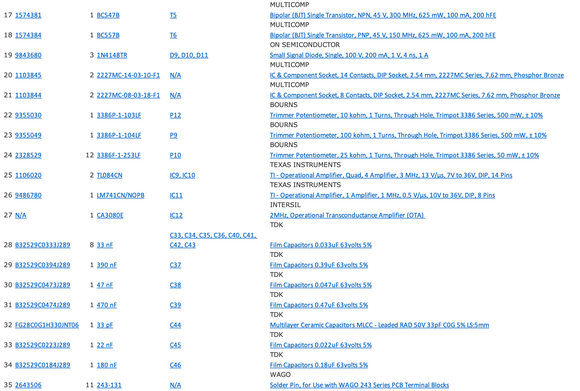

Overview components


Detecting & commutation interface

Board layout

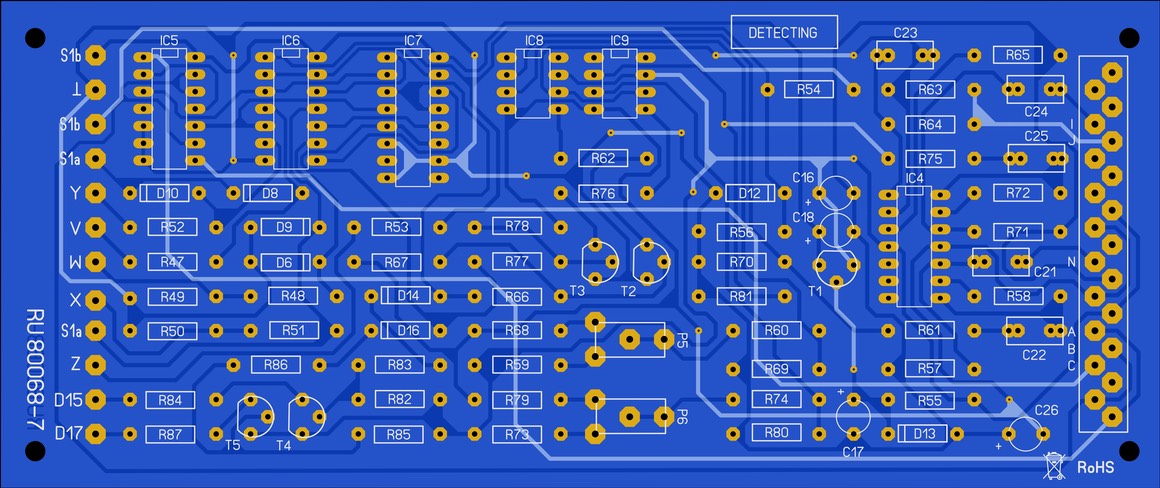

Elektor Vocoder - Detecting Interface

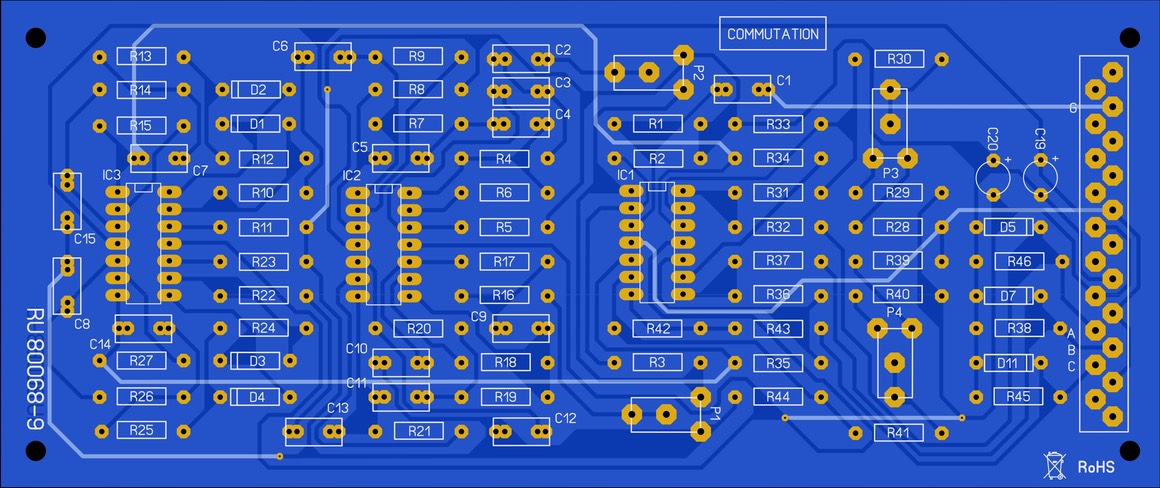

Elektor Vocoder - Commutation Interface

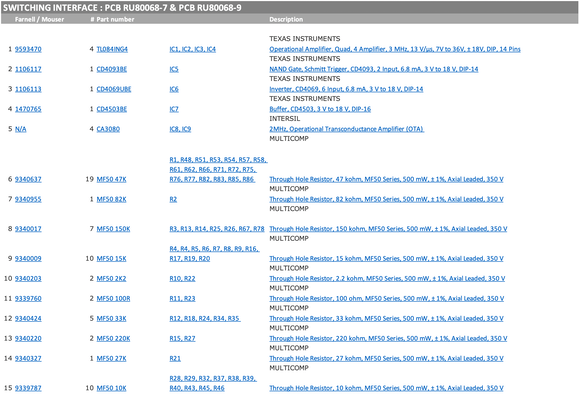

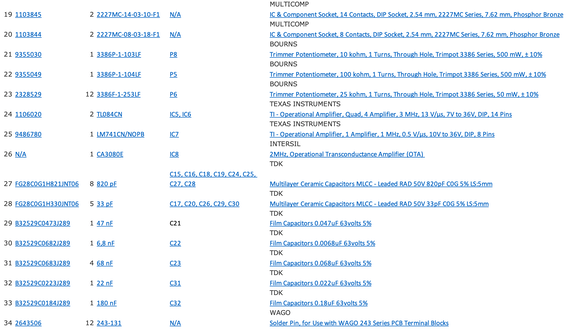

Overview components


Noise generator

Board layout

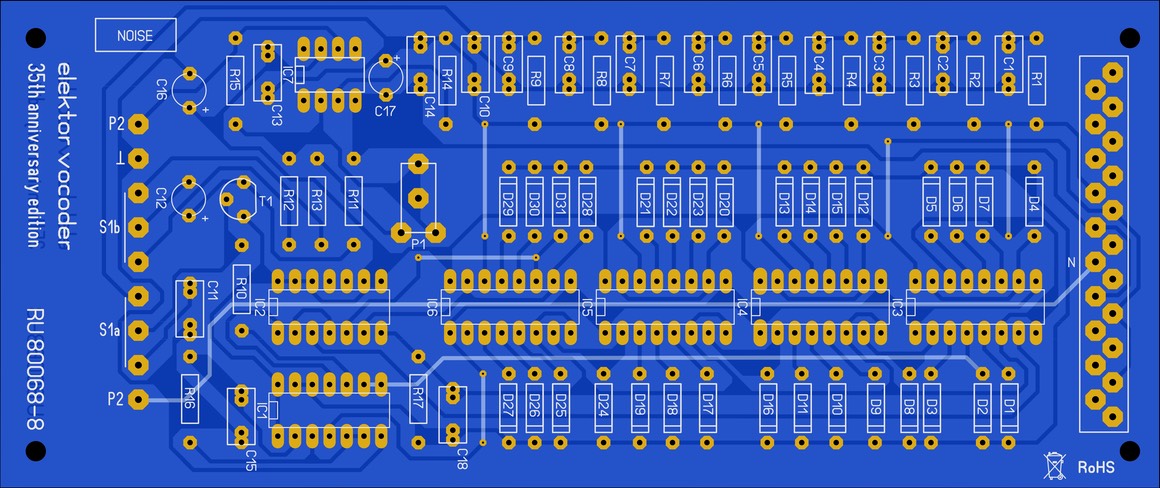

Elektor Vocoder - Noise Generator

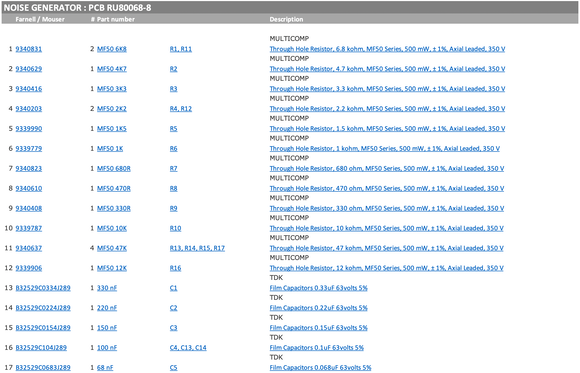

Overview components


Frontpanel

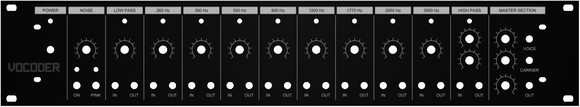

Panel layout

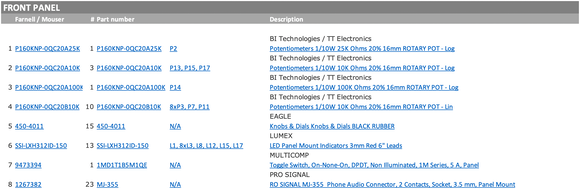

Overview components
