Housing cutouts


Preparation of the 19” rack

Estimated building time: 0,5 hours.

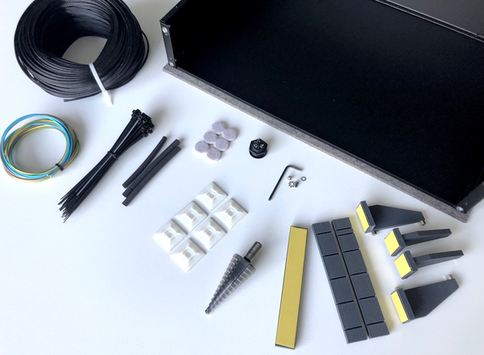

§  Sort all required components:

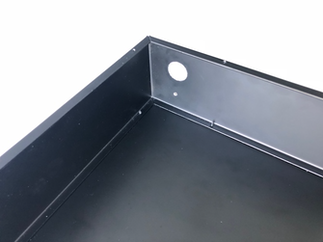

§  Drill an apropriate hole in the backpanel of the 19" case for supplying the mains voltage. Use a local approved connector and grommet.

§  Dril a second hole to connect the grouding.


Do not skip these steps because afterwards it is very difficult to carry out metalwork
.

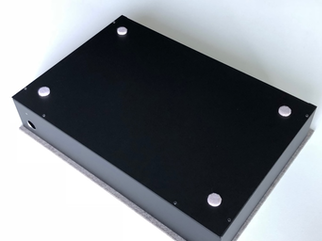

§  Stick 4 protection feet under the rack to prevent scratches during further work. The screws on the bottom plate can be very sharp:

§  You have finished this section, so click here to navigate back to the assembling concept.
