Noise generator


PCB reference RU80068.8

Estimated building time: 2,5 hours

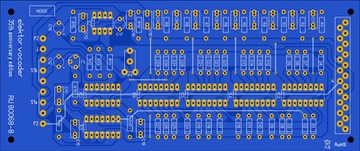

To complete this step the PCB with reference RU80068.8 is required:

Elektor Vocoder

Sort all required components as indicated in the BOM.

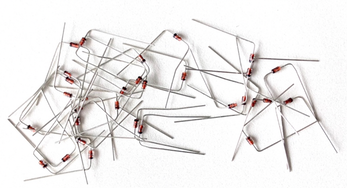

Bend the diodes so that they fit neatly right away, you need 31 of them:

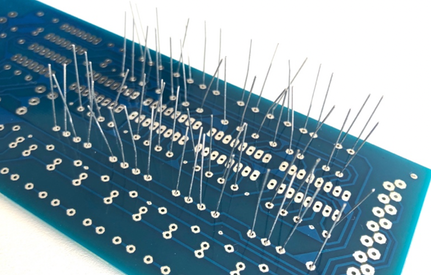

Solder the diodes on the right position. Note the direction of the black line (component) and tabbed indication (silkscreen). Do not reverse the polarity of these components:

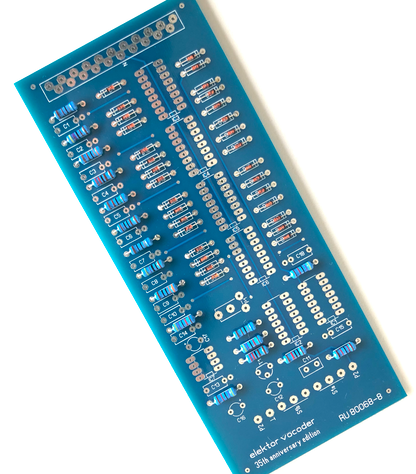

Bend aso the resistors so that they fit neatly right away and solder them according to the BOM on the right position:

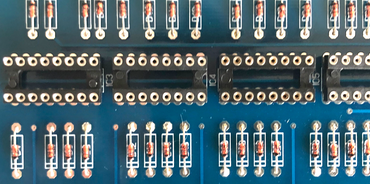

Add the IC sockets by soldering only 1 pin. Check both direction and alignment of the IC sockets before soldering the remaining pins:

Solder now the remaining pins:

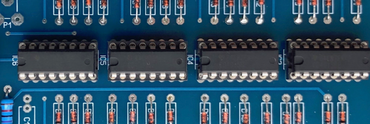

Also plug the corresponding IC's into the IC sockets, double check the direction of the notch to avoid destroyed IC's afterwards:

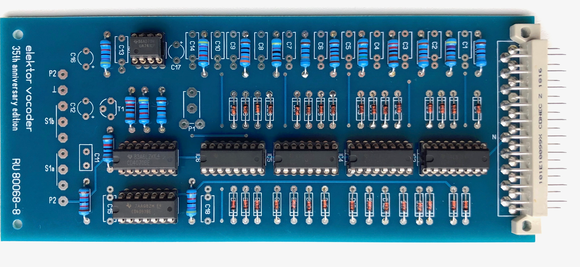

Put the 21 pin connector to the board, do not exert any excessive force. Solder only pin 1 and pin 21 and check for a right angle. Correct if necessary and solder all remaining pins:

Insert the transistor and solder only 1 of the legs, this allows lining up the components. Watch the direction of the transistor, correct if necessary and solder the remaining legs.

Thereafter add the trimpot:

Insert the electrolytic capacitors (e-caps), check the values according to the BOM. Solder only 1 of both legs, this allows lining up the components. Watch the polarity, correct if necessary and solder all remaining legs:

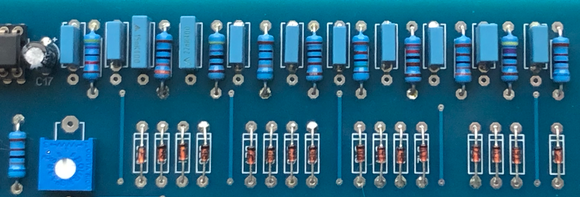

Add the film capacitors as specified in the BOM. Solder only 1 of both legs, this allows lining up the components. Crrect if necessary and solder all remaining legs:

Depending on the choosen capacitors, bend the legs as illustrated to adapt the lead spacing:

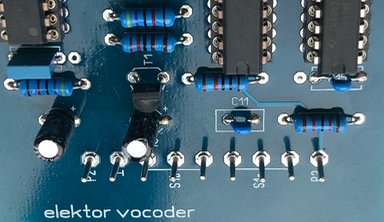

Finally use a pliers to press all solder pins into the PCB. The solder pins should have a diameter of 1 mm, the holes in the PCB have the same size. So firmly press the pins into the right position:

Thoroughly clean the PCB using flux cleaner and check for bad soldering or tin bulbs:

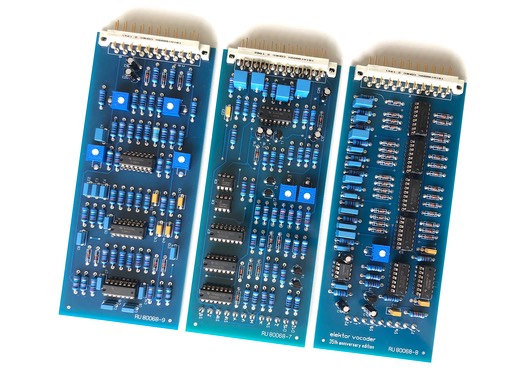

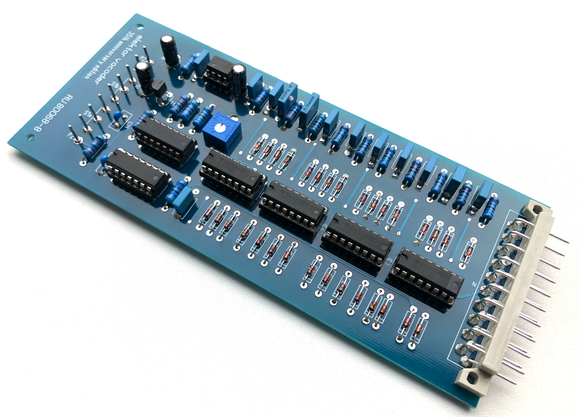

Congratulations, you have now finished the detecting interface, click here to navigate back to the sibilance expansion guide.
